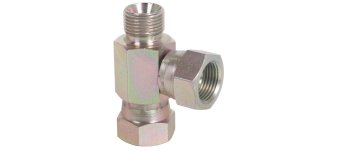

Male x Female Threaded Swivel Tees
Part No: 501-2210
- 2x 1/4"BSP female threads
- 1/4"BSP male thread
- 450 Bar working pressure
- 675 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
Part No: 501-2211
- 2x 3/8"BSP female threads
- 3/8"BSP male thread
- 380 Bar working pressure
- 570 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
Part No: 501-2212
- 2x 1/2"BSP female threads
- 1/2"BSP male thread
- 310 Bar working pressure
- 465 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
Part No: 501-2213
- 2x 3/4"BSP female threads
- 3/4"BSP male thread
- 240 Bar working pressure
- 360 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
Part No: 501-2214
- 2x 1"BSP female threads
- 1"BSP male thread
- 210 Bar working pressure
- 315 Bar proof pressure
- Plated steel hydraulic fitting
- 60° cone (BS5200)
