KT Series Pumps with 34cc Piston Motor

Pratissoli KT16 HYPACK Motorpump Unit
Pratissoli KT16 HYPACK Motorpump Unit
Part No: KT16-HYP34
  • 500 Bar max water pressure
  • 27 Lpm water flow @ 1750 Rpm
  • 34cc piston motor
  • Oil flow 60 Lpm @ 1750 Rpm
  • Oil 320 Bar
  • Nickel plated st.steel pump manifold

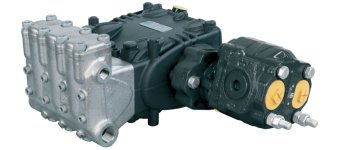

Pratissoli KT19 HYPACK Motorpump Unit
Pratissoli KT19 HYPACK Motorpump Unit
Part No: KT19-HYP34
  • 400 Bar max water pressure
  • 36 Lpm water flow @ 1750 Rpm
  • 34cc piston motor
  • Oil flow 60 Lpm @ 1750 Rpm
  • Oil 360 Bar
  • Nickel plated st.steel pump manifold
Pratissoli KT20 HYPACK Motorpump Unit
Pratissoli KT20 HYPACK Motorpump Unit
Part No: KT20-HYP34
  • 400 Bar max water pressure*
  • 36 Lpm water flow @ 1450 Rpm
  • 43 Lpm water flow @ 1750Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil flow 60 Lpm @ 1750 Rpm
Pratissoli KT22 HYPACK Motorpump Unit
Pratissoli KT22 HYPACK Motorpump Unit
Part No: KT22-HYP34
  • 320 Bar max water pressure*
  • 43 Lpm water flow @ 1450 Rpm
  • 52 Lpm water flow @ 1750 Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil flow 60 Lpm @ 1750 Rpm
Pratissoli KT24 HYPACK Motorpump Unit
Pratissoli KT24 HYPACK Motorpump Unit
Part No: KT24-HYP34
  • 250 Bar max water pressure*
  • 51 Lpm water flow @ 1450 Rpm
  • 62 Lpm water flow @ 1750 Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil flow 60 Lpm @ 1750 Rpm
Pratissoli KT28 HYPACK Motorpump Unit
Pratissoli KT28 HYPACK Motorpump Unit
Part No: KT28-HYP34
  • 200 Bar max water pressure*
  • 70 Lpm water flow @ 1450 Rpm
  • 84 Lpm water flow @ 1750 Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil flow 60 Lpm @ 1750 Rpm
Pratissoli KT30 HYPACK Motorpump Unit
Pratissoli KT30 HYPACK Motorpump Unit
Part No: KT30-HYP34
  • 175 Bar max water pressure*
  • 80 Lpm water flow @ 1450 Rpm
  • 96 Lpm water flow @ 1750 Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil flow 60 Lpm @ 1750 Rpm

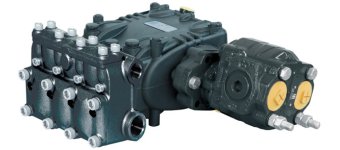

Pratissoli KT32 HYPACK Motorpump Unit
Pratissoli KT32 HYPACK Motorpump Unit
Part No: KT32-HYP34
  • 150 Bar max water pressure
  • 91 Lpm water flow @ 1450 Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil 380 Bar
  • HR treated cast iron manifold
Pratissoli KT34 HYPACK Motorpump Unit
Pratissoli KT34 HYPACK Motorpump Unit
Part No: KT34-HYP34
  • 150 Bar max water pressure
  • 103 Lpm water flow @ 1450 Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil 430 Bar
  • HR treated cast iron manifold
Pratissoli KT36 HYPACK Motorpump Unit
Pratissoli KT36 HYPACK Motorpump Unit
Part No: KT36-HYP34
  • 120 Bar max water pressure*
  • 115 Lpm water flow @ 1450 Rpm
  • 125 Lpm water flow @ 1580 Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil flow 54 Lpm @ 1580 Rpm
Pratissoli KT40 HYPACK Motorpump Unit
Pratissoli KT40 HYPACK Motorpump Unit
Part No: KT40-HYP34
  • 100 Bar max water pressure
  • 142 Lpm water flow @ 1450 Rpm
  • 34cc piston motor
  • Oil flow 49 Lpm @ 1450 Rpm
  • Oil 390 Bar
  • HR treated cast iron manifold
