KT Series Pumps with 48cc Gear Motor
Part No: KT16-HYG48
- 500 Bar max water pressure
- 27 Lpm water flow @ 1750 Rpm
- 48cc gear motor
- Oil flow 84 Lpm @ 1750 Rpm
- Oil 220 Bar
- Nickel plated st.steel pump manifold

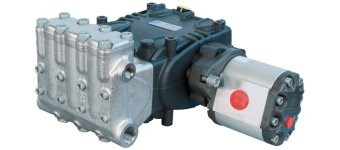

Part No: KT19-HYG48
- 500 Bar max water pressure*
- 30 Lpm water flow @ 1450 Rpm
- 36 Lpm water flow @ 1750Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil flow 84 Lpm @ 1750 Rpm
Part No: KT20-HYG48
- 400 Bar max water pressure*
- 36 Lpm water flow @ 1450 Rpm
- 43 Lpm water flow @ 1750Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil flow 84 Lpm @ 1750 Rpm
Part No: KT22-HYG48
- 320 Bar max water pressure*
- 43 Lpm water flow @ 1450 Rpm
- 52 Lpm water flow @ 1750 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil flow 84 Lpm @ 1750 Rpm
Part No: KT24-HYG48
- 250 Bar max water pressure*
- 51 Lpm water flow @ 1450 Rpm
- 62 Lpm water flow @ 1750 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil flow 84 Lpm @ 1750 Rpm
Part No: KT26-HYG48
- 250 Bar max water pressure
- 60 Lpm water flow @ 1450 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil 300 Bar
- HR treated cast iron manifold

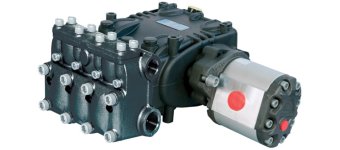

Part No: KT28-HYG48
- 200 Bar max water pressure*
- 70 Lpm water flow @ 1450 Rpm
- 84 Lpm water flow @ 1750 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil flow 84 Lpm @ 1750 Rpm
Part No: KT30-HYG48
- 175 Bar max water pressure*
- 80 Lpm water flow @ 1450 Rpm
- 96 Lpm water flow @ 1750 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil flow 84 Lpm @ 1750 Rpm
Part No: KT32-HYG48
- 150 Bar max water pressure
- 91 Lpm water flow @ 1450 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil 270 Bar
- HR treated cast iron manifold
Part No: KT34-HYG48
- 150 Bar max water pressure
- 103 Lpm water flow @ 1450 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil 300 Bar
- HR treated cast iron manifold
Part No: KT36-HYG48
- 120 Bar max water pressure*
- 115 Lpm water flow @ 1450 Rpm
- 125 Lpm water flow @ 1580 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil flow 76 Lpm @ 1580 Rpm
Part No: KT40-HYG48
- 100 Bar max water pressure
- 142 Lpm water flow @ 1450 Rpm
- 48cc gear motor
- Oil flow 70 Lpm @ 1450 Rpm
- Oil 280 Bar
- HR treated cast iron manifold
