Pratissoli KF & HF Series 415V Motor Pump Units

Pratissoli KF40 Series MPU with Valves & Filter
Pratissoli KF40 Series MPU with Valves & Filter
Part No: M500-1444
  • 110 Bar max pressure*
  • 170 Lpm max flow*
  • 415V, 45kW, 1000 Rpm, IE3 motor*
  • Pratissoli KF40 pump
  • Pratissoli R2 pressure regulator
  • Pratissoli S723 pre-set safety valve
Pratissoli KF36 Series MPU with Valves & Filter
Pratissoli KF36 Series MPU with Valves & Filter
Part No: M500-1440
  • 130 Bar max pressure
  • 153 Lpm max flow
  • 415V, 45kW, 1000 Rpm, IE3 motor
  • Pratissoli KF36 pump
  • Pratissoli R2 pressure regulator
  • Pratissoli S723 pre-set safety valve
Pratissoli KF32 Series MPU with Valves & Filter
Pratissoli KF32 Series MPU with Valves & Filter
Part No: M500-1441
  • 180 Bar max pressure
  • 120 Lpm max flow
  • 415V, 45kW, 1000 Rpm, IE3 motor
  • Pratissoli KF32 pump
  • Pratissoli R2 pressure regulator
  • Pratissoli S723 pre-set safety valve
Pratissoli KF30 Series MPU with Valves & Filter
Pratissoli KF30 Series MPU with Valves & Filter
Part No: M500-1442
  • 200 Bar max pressure
  • 106 Lpm max flow
  • 415V, 45kW, 1000 Rpm, IE3 motor
  • Pratissoli KF30 pump
  • Pratissoli R2 pressure regulator
  • Pratissoli S723 pre-set safety valve

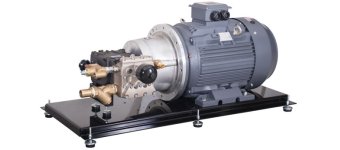

Pratissoli KF28 Series MPU with Valves & Filter
Pratissoli KF28 Series MPU with Valves & Filter
Part No: M500-1443
  • 210 Bar max pressure
  • 93 Lpm max flow
  • 415V, 37kW, 1000 Rpm, IE3 motor
  • Pratissoli KF28 pump
  • Pratissoli R2 pressure regulator
  • Pratissoli S723 pre-set safety valve
Pratissoli HF25 Series MPU with Valves & Filter
Pratissoli HF25 Series MPU with Valves & Filter
Part No: M500-1445
  • 280 Bar max pressure
  • 73 Lpm max flow
  • 415V, 45kW, 1000 Rpm, IE3 motor
  • Pratissoli HF25 pump
  • Pratissoli R1/400 pressure regulator
  • Pratissoli S723 pre-set safety valve
Pratissoli HF22 Series MPU with Valves & Filter
Pratissoli HF22 Series MPU with Valves & Filter
Part No: M500-1446
  • 350 Bar max pressure
  • 57 Lpm max flow
  • 415V, 45kW, 1000 Rpm, IE3 motor
  • Pratissoli HF22 pump
  • Pratissoli R1/400 pressure regulator
  • Pratissoli S723 pre-set safety valve
Pratissoli HF20 Series MPU with Valves & Filter
Pratissoli HF20 Series MPU with Valves & Filter
Part No: M500-1447
  • 400 Bar max pressure
  • 47 Lpm max flow
  • 415V, 37kW, 1000 Rpm, IE3 motor
  • Pratissoli HF20 pump
  • Pratissoli R1/400 pressure regulator
  • Pratissoli S723 pre-set safety valve
Pratissoli HF18 Series MPU with Valves & Filter
Pratissoli HF18 Series MPU with Valves & Filter
Part No: M500-1448
  • 500 Bar max pressure
  • 38 Lpm max flow
  • 415V, 37kW, 1000 Rpm, IE3 motor
  • Pratissoli HF18 pump
  • Pratissoli R1/600 pressure regulator
  • Pratissoli S723 pre-set safety valve
Pratissoli HF18 Series MPU with Valves & Filter
Pratissoli HF18 Series MPU with Valves & Filter
Part No: M500-1449
  • 600 Bar max pressure
  • 30 Lpm max flow
  • 415V, 45kW, 1000 Rpm, IE3 motor*
  • Pratissoli HF18 pump
  • Pratissoli R1/600 pressure regulator
  • Pratissoli S723 pre-set safety valve
