Rotating Turbo Nozzles
<
1 of 2
>
Part No: ROTIN
- 100 Bar max pressure
- 13 Lpm max flow
- 60°C max water temperature
- Rotating nozzle head
- Fitted with 1.4 jet
- Fixed Pressure

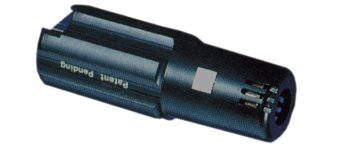

Part No: ROTOMAX1.5
- 250 Bar max pressure
- 21 Lpm max flow
- 80°C max water temperature
- Rotating nozzle head
- Fitted with 1.5 jet
- Fixed pressure

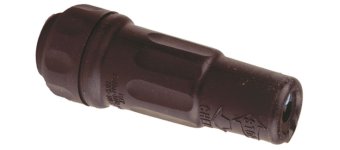

Part No: ROTOTEK1.5
- 250 Bar max pressure
- 21 Lpm max flow
- 60°C max water temperature
- Rotating nozzle head
- Fitted with 1.5 jet
- Hi-Lo pressure
Part No: ROMAX-230
- 275 Bar rated pressure
- 11.3 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 030 nozzle - Orange
- Switch from fixed 0° pencil jet to 15° rotating cone
Part No: ROMAX-235
- 275 Bar rated pressure
- 13.2 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 035 nozzle - Red
- Switch from fixed 0° pencil jet to 15° rotating cone
Part No: ROMAX-240
- 275 Bar rated pressure
- 15 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 040 nozzle - Yellow
- Switch from fixed 0° pencil jet to 15° rotating cone
Part No: ROMAX-245
- 275 Bar rated pressure
- 17 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 045 nozzle - Lt Blue
- Switch from fixed 0° pencil jet to 15° rotating cone
Part No: ROMAX-250
- 275 Bar rated pressure
- 18.9 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 050 nozzle - Black
- Switch from fixed 0° pencil jet to 15° rotating cone
Part No: ROMAX-255
- 275 Bar rated pressure
- 20.7 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 055 nozzle - Brown
- Switch from fixed 0° pencil jet to 15° rotating cone

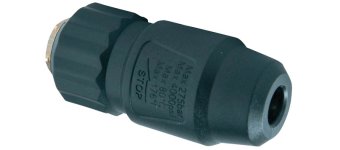

Part No: ROMAX-265
- 200 Bar rated pressure
- 21 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 065 nozzle - Neutral
- Switch from fixed 0° pencil jet to 15° rotating cone

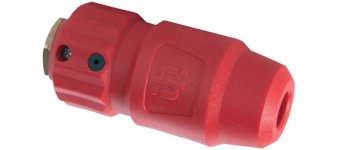

Part No: ROMAX-435
- 400 Bar rated pressure
- 16 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 035 nozzle - Dk Blue
- Switch from fixed 0° pencil jet to 15° rotating cone
Part No: ROMAX-440
- 400 Bar rated pressure
- 18.2 Lpm max flow
- 80°C rated temperature
- 1/4"BSPF inlet
- Equivalent to 040 nozzle - Red
- Switch from fixed 0° pencil jet to 15° rotating cone
<
