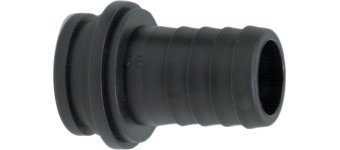

Flynut Fit Hose Barbs
<
1 of 2
>
Part No: 8002150
- 11mm hose barb
- For 1/2" flynut
- 13.7mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002151
- 13mm hose barb
- For 1/2" flynut
- 13.7mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002200
- 13mm hose barb
- For 3/4" flynut
- 17.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002201
- 15mm hose barb
- For 3/4" flynut
- 17.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002202
- 19mm hose barb
- For 3/4" flynut
- 17.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002250
- 13mm hose barb
- For 1" flynut
- 24.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002251
- 15mm hose barb
- For 1" flynut
- 24.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002252
- 19mm hose barb
- For 1" flynut
- 24.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002253
- 22mm hose barb
- For 1" flynut
- 24.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002254
- 25mm hose barb
- For 1" flynut
- 24.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002300
- 22mm hose barb
- For 1"1/4 flynut
- 31.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
Part No: 8002301
- 25mm hose barb
- For 1"1/4 flynut
- 31.5mm dia. seat
- 10 Bar max pressure
- 40°C max temperature
- Polypropylene construction
<
