Faicom Hose Reel Swivels

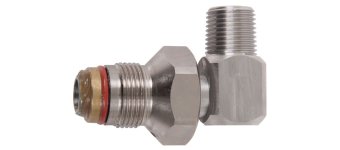

Part No: 0636GX
- 20 Bar max pressure
- AISI303 stainless steel
- Viton seals
- Inlet 1"BSPM
- Outlet 1"BSPF
- Supplied w/ 1" elbow

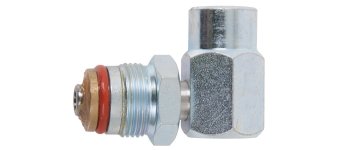

Part No: 0065A
- 60 Bar max pressure
- Zinc plated steel
- Polyurethane seals
- Inlet 3/4"BSPM - ø12mm od pin
- Outlet 3/4"BSPF
- Suitable for air, oil & water

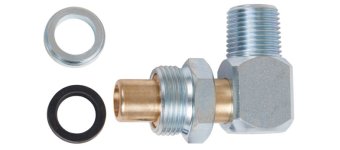

Part No: 0065C
- 60 Bar max pressure
- Zinc plated steel
- Buna seals
- Inlet 3/4"BSPM - ø16mm od pin
- Outlet 1/2"BSPTM w/ 60° cone
- Suitable for water only

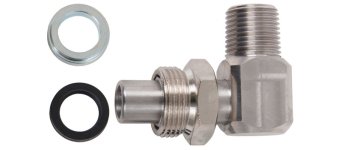

Part No: 0065CX
- 60 Bar max pressure
- AISI303 stainless steel
- Buna seals
- Inlet 3/4"BSPM - ø16mm od pin
- Outlet 1/2"BSPTM w/ 60° cone
- Suitable for water only

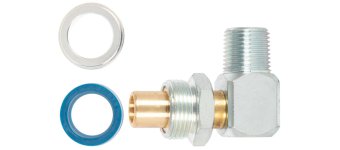

Part No: 0065D
- 60 Bar max pressure
- Zinc plated steel
- Polyurethane seals
- Inlet 3/4"BSPM - ø16mm od pin
- Outlet 1/2"BSPTM w/ 60° cone
- Suitable for air, oil & water

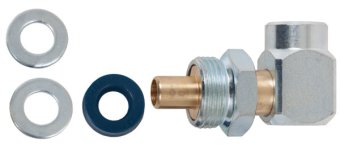

Part No: 0066B
- 400 Bar max pressure
- Zinc plated steel
- Silicon PTFE seals
- Inlet 3/4"BSPM - ø11mm od pin
- Outlet 3/8"BSPF
- Suitable for water only

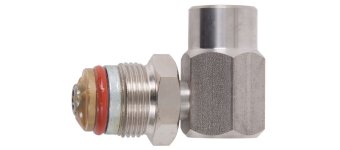

Part No: 0066BX
- 400 Bar max pressure
- AISI303 stainless steel
- Silicon PTFE seals
- Inlet 3/4"BSPM - ø11mm od pin
- Outlet 3/8"BSPF
- Suitable for water only
Part No: 00238X
- 400 Bar max pressure
- AISI303 stainless steel
- Silicon PTFE seals
- Inlet 3/4"BSPM - ø16mm od pin
- Outlet 1/2"BSPTM w/ 60° cone
- Suitable for air, oil & water
