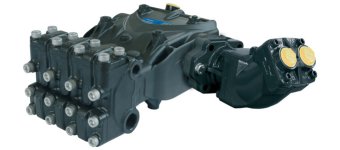

EV Series Pumps with 34cc Piston Motor
Part No: E4B2548-HYP34
- 250 Bar max water pressure
- 48 Lpm water flow @ 1450 Rpm
- 58 Lpm water flow @ 1750 Rpm
- 34cc piston motor
- Oil flow 49 Lpm @ 1450 Rpm
- Oil flow 60 Lpm @ 1750 Rpm
Part No: E4B1858-HYP34
- 180 Bar max water pressure
- 58 Lpm water flow @ 1450 Rpm
- 70 Lpm water flow @ 1750 Rpm
- 34cc piston motor
- Oil flow 49 Lpm @ 1450 Rpm
- Oil flow 60 Lpm @ 1750 Rpm
Part No: E4B1575-HYP34
- 150 Bar max water pressure
- 75 Lpm water flow @ 1450 Rpm
- 90 Lpm water flow @ 1750 Rpm
- 34cc piston motor
- Oil flow 49 Lpm @ 1450 Rpm
- Oil flow 60 Lpm @ 1750 Rpm
Part No: E4B1381-HYP34
- 130 Bar max water pressure
- 81 Lpm water flow @ 1450 Rpm
- 98 Lpm water flow @ 1750 Rpm
- 34cc piston motor
- Oil flow 49 Lpm @ 1450 Rpm
- Oil flow 60 Lpm @ 1750 Rpm
Part No: E4B1294-HYP34
- 120 Bar max water pressure
- 94 Lpm water flow @ 1450 Rpm
- 34cc piston motor
- Oil flow 49 Lpm @ 1450 Rpm
- Oil 310 Bar
- HR treated cast iron manifold
