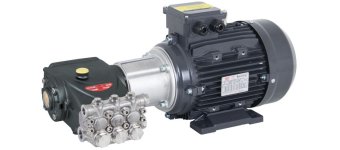

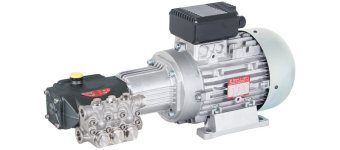

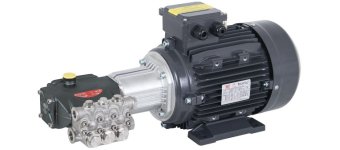

DPM Stainless Steel Motor Pump Units
Part No: M100-1204
- 150 Bar max pressure
- 3.5 Lpm max flow
- 240 Volt, 2 Hp, 1450 Rpm motor
- Interpump SS1B1503 pump
- AISI 316L stainless steel manifold
- Interpump flange & flexi coupling
Part No: M100-1200
- 150 Bar max pressure
- 5 Lpm max flow
- 240 Volt, 3 Hp, 1450 Rpm motor
- Interpump SS1B1505 pump
- AISI 316L stainless steel manifold
- Interpump flange & flexi coupling
Part No: M100-1201
- 150 Bar max pressure
- 7 Lpm max flow
- 240 Volt, 3 Hp, 1450 Rpm motor
- Interpump SS1B1507 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
Part No: M100-1205
- 150 Bar max pressure
- 3.5 Lpm max flow
- 415 Volt, 1.5 Hp, 1450 Rpm motor
- Interpump SS1B1503 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
Part No: M100-1202
- 150 Bar max pressure
- 5 Lpm max flow
- 415 Volt, 3 Hp, 1450 Rpm motor
- Interpump SS1B1505 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
Part No: M100-1203
- 150 Bar max pressure
- 7 Lpm max flow
- 415 Volt, 3 Hp, 1450 Rpm motor
- Interpump SS1B1507 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
Part No: M100-1209
- 150 Bar max pressure
- 9 Lpm max flow
- 415 Volt, 4 Hp, 1450 Rpm motor
- Interpump SS1B1509 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
Part No: M100-1210
- 140 Bar max pressure
- 11 Lpm max flow
- 415 Volt, 4 Hp, 1450 Rpm motor
- Interpump SS1B1511 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
Part No: M100-1212
- 150 Bar max pressure
- 13 Lpm max flow
- 415 Volt, 5.5 Hp, 1450 Rpm motor
- Interpump SS1B1513 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
Part No: M100-1211
- 150 Bar max pressure
- 14 Lpm max flow
- 415 Volt, 5.5 Hp, 1450 Rpm motor
- Interpump SS1B1514 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
Part No: M100-1220
- 200 Bar max pressure
- 15 Lpm max flow
- 415 Volt, 7.5 Hp, 1450 Rpm motor
- Interpump SS3B2015 pump
- AISI 316L stainless steel manifold
- Interpump flange & flexi coupling
Part No: M100-1222
- 200 Bar max pressure
- 18 Lpm max flow
- 415 Volt, 10 Hp, 1450 Rpm motor
- Interpump SS3B2018 pump
- AISI 316L stainless steel manifold
- Nickel plated crankcase
