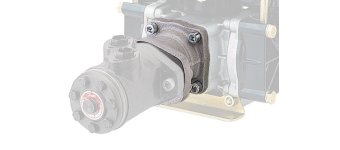

Comet Flanges for Hydraulic Drive
Part No: 5011018200
- For MP20-MP30-P48-P50-APS31/41/51/61/71/91 pumps
- For pumps with 6 hole solid shaft
- For motor with 1" parallel shaft
- 6.35mm drive key
- SAE J744 Type A 2 bolt flange
Part No: 5011018700
- For BP40K, BP60K, BP105K, BP125K
- For pumps with 1"3/8 cardan shaft
- For motor with 1" parallel shaft
- 6.35mm drive key
- SAE J744 Type A 2 bolt flange
Part No: 5011019600
- For BP151K, BP171K pumps
- For pumps with 1"3/8 cardan shaft
- For motor with 1" parallel shaft
- 6.35mm drive key
- SAE J744 Type A 2 bolt flange
Part No: 5011018800
- For BP40K, BP60K, BP105K, BP125K
- For pumps with 1"3/8 cardan shaft
- For motor with 25mm parallel shaft
- 8mm drive key
- SAE J744 Type A 2 bolt flange
Part No: 5011019000
- For BP205k, BP235K, BP241...
- ...BP251HS, BP280K, BP281...
- ...BP291HS, BPS300, BPS300HS
- For pumps with 1"3/8 cardan shaft
- For motor with 25mm parallel shaft
- 8mm drive key
Part No: 5011019500
- For MP20-MP30-P48-P50-APS31/41/51/61/71/91 pumps
- For pumps with 6 hole solid shaft
- For motor with 25mm parallel shaft
- 8mm drive key
- SAE J744 Type A 2 bolt flange
Part No: 5011019700
- For BP151K, BP171K pumps
- For pumps with 1"3/8 cardan shaft
- For motor with 25mm parallel shaft
- 8mm drive key
- SAE J744 Type A 2 bolt flange
Part No: 5011019800
- For BP205K-BP235K-BP241-BP251HS-BP280K-BP281-BP291HS pumps
- For pumps with 1"3/8 cardan shaft
- For motor with 32mm parallel shaft
- 10mm drive key
- SAE J744 Type A 2 bolt flange
Part No: 5011022600
- For BP60K, BP105K, BP125K pumps
- For pumps with 30mm parallel shaft
- For motor with 1" parallel shaft
- 6.35mm drive key
- SAE J744 Type A 2 bolt flange
Part No: 5011022700
- For BP60K, BP105K, BP125K pumps
- For pumps with 30mm parallel shaft
- For motor with 25mm parallel shaft
- 6.35mm drive key
- SAE J744 Type A 2 bolt flange
