BE QR Couplings for Quick Connect Nozzles

AR1 Pivot Coupler
AR1 Pivot Coupler
Part No: 85.300.172
  • 275 Bar max pressure
  • 3 positon, 90° range
  • BE QR adaptor inlet
  • BE QR coupler outlet
  • ø11.7mm plug
  • For AR1 QR adaptors & QC nozzles
AR1 Series QR Coupler
AR1 Series QR Coupler
Part No: 85.300.107
  • 1/4"NPTM thread
  • 275 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Brass body
  • ø11.7mm plug
AR1 Series QR Coupler - St.Steel
AR1 Series QR Coupler - St.Steel
Part No: 85.300.107S
  • 1/4"NPTM thread
  • 275 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Stainless steel body
  • ø11.7mm plug
AR1 Series QR Coupler - St.Steel
AR1 Series QR Coupler - St.Steel
Part No: 4101200005
  • 1/4"BSPM thread
  • 250 Bar rated pressure
  • 40 Lpm max flow
  • 90°C rated temperature
  • Stainless steel body
  • ø11.7mm plug
AR1 Series QR Coupler
AR1 Series QR Coupler
Part No: 0212002220
  • 1/4"BSPF thread
  • 250 Bar rated pressure
  • 40 Lpm max flow
  • 150°C rated temperature
  • Brass body
  • 11.7mm plug
AR1 Series QR Coupler
AR1 Series QR Coupler
Part No: 85.300.102
  • 1/4"NPTF thread
  • 275 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Brass body
  • ø11.7mm plug
AR1 Series QR Coupler - St.Steel
AR1 Series QR Coupler - St.Steel
Part No: 85.300.102S
  • 1/4"NPTF thread
  • 275 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Stainless steel body
  • ø11.7mm plug

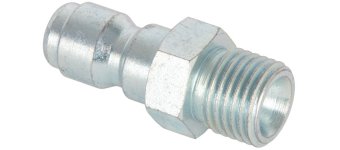

AR1 Series QR Adaptor
AR1 Series QR Adaptor
Part No: 85.300.109
  • 1/4"NPTM thread
  • 275 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Plated steel body
  • ø11.7mm plug
AR1 Series QR Adaptor - St.Steel
AR1 Series QR Adaptor - St.Steel
Part No: 85.300.109S
  • 1/4"NPTM thread
  • 275 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Stainless steel body
  • ø11.7mm plug
AR1 Series QR Adaptor
AR1 Series QR Adaptor
Part No: 85.300.101
  • 1/4"NPTF thread
  • 275 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Plated steel body
  • ø11.7mm plug
AR1 Series QR Adaptor - St.Steel
AR1 Series QR Adaptor - St.Steel
Part No: 85.300.101S
  • 1/4"NPTF thread
  • 275 Bar rated pressure
  • 30 Lpm max flow
  • 90°C rated temperature
  • Stainless steel body
  • ø11.7mm plug
