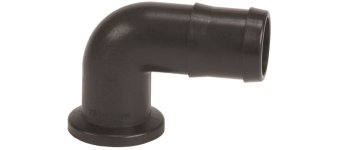

Flange x 90° Hose Barb

Flange x 90° Hose Barb
Flange x 90° Hose Barb
  • 1" flange
  • 3/4" hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
Part No: 9901-M100BRB90
  • 1" flange
  • 1" hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
  • 1" flange
  • 1"1/4 hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
  • 1" flange
  • 1"1/2 hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
  • 2" flange
  • 1"1/4 hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
  • 2" flange
  • 1"1/2 hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
Part No: 9901-M200BRB90
  • 2" flange
  • 2" hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
  • 2" full port flange
  • 1"1/2 hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
Part No: 9901-M220BRB90
  • 2" full port flange
  • 2" hose barb
  • 10 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
  • 3" flange
  • 2" hose barb
  • 8.6 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
Flange x 90° Hose Barb
Flange x 90° Hose Barb
Part No: 9901-M300BRB90
  • 3" flange
  • 3" hose barb
  • 8.6 Bar max pressure @ 21°C
  • -17 to 65°C working temperature
  • Glass reinforced polypropylene
