High Pressure Quick Release Couplings

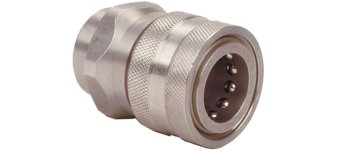

Part No: COUPL01-F
- 200 Bar max pressure
- 50 Lpm max flow
- 100°C max temperature
- 1/2"BSPF thread
- AISI303 body & ring - Viton seals
- Compatible with AKBO HP adaptors

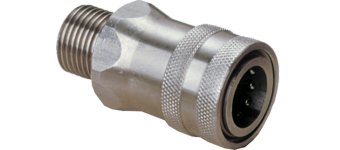

Part No: COUPL01-M
- 200 Bar max pressure
- 50 Lpm max flow
- 100°C max temperature
- 1/2"BSPM thread
- AISI303 body & ring - Viton seals
- Compatible with AKBO HP adaptors
Part No: ADAPT1/4-F
- 200 Bar max pressure
- 50 Lpm max flow
- 100°C max temperature
- 1/4"BSPF thread
- AISI303 stainless steel
- Compatible with AKBO HP couplers

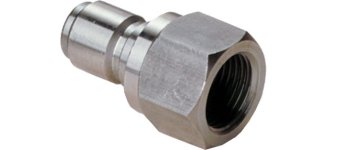

Part No: ADAPT01-F
- 200 Bar max pressure
- 50 Lpm max flow
- 100°C max temperature
- 1/2"BSPF thread
- AISI303 stainless steel
- Compatible with AKBO HP couplers

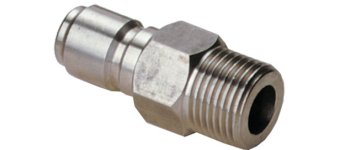

Part No: ADAPT3/8-M
- 200 Bar max pressure
- 50 Lpm max flow
- 100°C max temperature
- 3/8"BSPM thread
- AISI303 stainless steel
- Compatible with AKBO HP couplers
Part No: ADAPT01-M
- 200 Bar max pressure
- 50 Lpm max flow
- 100°C max temperature
- 1/2"BSPM thread
- AISI303 stainless steel
- Compatible with AKBO HP couplers
