Pressure Wash Components » Nozzle Heads & Nozzles »

Adjustable Nozzle Heads

AR1 Pivot Coupler
AR1 Pivot Coupler
Part No: 85.300.172
  • 275 Bar max pressure
  • 3 positon, 90° range
  • BE QR adaptor inlet
  • BE QR coupler outlet
  • ø11.7mm plug
  • For AR1 QR adaptors & QC nozzles

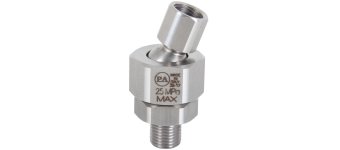

Adjustable Angle Nozzle Holder
Adjustable Angle Nozzle Holder
Part No: 26.1700.15
  • 250 Bar rated pressure
  • 40 Lpm max flow
  • 90°C max temperature
  • 60° angle of rotation
  • AISI303 stainless steel construction
  • 1/4"BSPM inlet

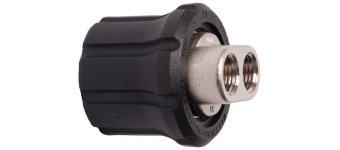

TD1P Change-Over Nozzle Head
TD1P Change-Over Nozzle Head
Part No: 23.0015.00
  • 200 Bar rated pressure
  • 40 Lpm max flow
  • 90°C max temperature
  • 1/4"BSPF inlet
  • 2x 1/4"NPTF outlets

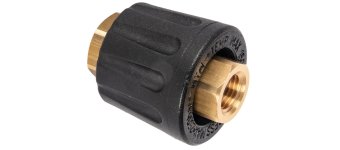

Adjustable Pressure Head
Adjustable Pressure Head
Part No: 16.0062
  • 220 Bar rated pressure
  • 150°C max temperature
  • Twist from high-low pressure
  • 1/4"BSPF inlet
  • 1/4"NPTF outlet

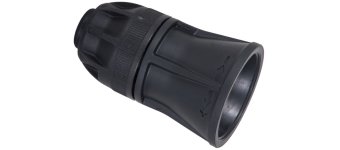

AN25 Adjustable Pressure Head
AN25 Adjustable Pressure Head
Part No: 4050502001
  • 250 Bar max pressure
  • 30 Lpm max flow
  • 160°C max temperature
  • Twist from high-low pressure
  • 1/4"BSPF inlet
  • 1/8"NPTF outlet
AN25 Adjustable Pressure Head
AN25 Adjustable Pressure Head
Part No: 4050502000
  • 250 Bar max pressure
  • 30 Lpm max flow
  • 160°C max temperature
  • Twist from high-low pressure
  • 1/4"BSPF inlet
  • 1/4"NPTF outlet
Adjustable Pressure Head
Adjustable Pressure Head
Part No: 22.0000.00
  • 250 Bar rated pressure
  • 30 Lpm max flow
  • 160°C max temperature
  • Twist from high-low pressure
  • 1/4"BSPF inlet
  • 1/4"NPTF outlet
