240 Volt Solid Shaft Motors
Part No: 604-1056
- 240 Volts - 50 Hz - 1Ph
- 1.0 Hp, 0.75 kW, 5.1 Amps
- 1450 Rpm - 4 pole
- Permanent capacitor
- 19mm male shaft
- IEC 80 frame - B3 foot mount
Part No: 604-1060
- 240 Volts - 50 Hz - 1Ph
- 2.0 Hp, 1.5 kW, 9.4 Amps
- 1450 Rpm - 4 pole
- Permanent capacitor
- 24mm male shaft
- IEC 90L frame - B3 foot mount
Part No: 9000250
- 240 Volts - 50 Hz - 1Ph
- 3.0 Hp, 2.2 kW, 13.0 Amps
- 1450 Rpm - 4 pole
- Permanent capacitor
- 28mm male shaft
- IEC 100L frame - B34

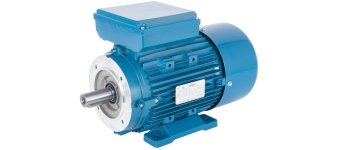

Part No: 604-1135
- 230 Volts - 50 Hz - 1Ph
- 3.0 Hp, 2.2 kW, 12.2 Amps
- 1450 Rpm - 4 pole
- Cap start/cap run
- 28mm male shaft
- IEC 100L frame - B34

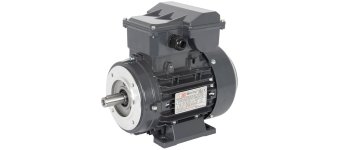

Part No: 604-1005
- 230 Volts - 50 Hz - 1Ph
- 3.0 Hp, 2.2 kW, 11.6 Amps
- 2800 Rpm - 2 pole
- Permanent capacitor
- 24mm male shaft
- IEC 90L frame - B34
