Pressure Regulating Valves

Part No: HXM
  • 130 Bar max pressure
  • 15 Lpm max flow
  • 60C max water temperature
  • Brass construction
  • For use with IP FE series pumps
  • Misting specific valve

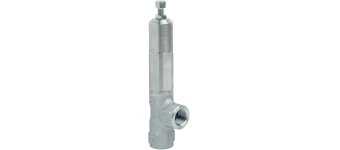

Part No: SX1
  • 250 Bar max pressure
  • 60 Lpm max flow
  • 85C max water temperature
  • AISI 316L stainless steel
  • Not preset
  • 1/2"BSPF inlet

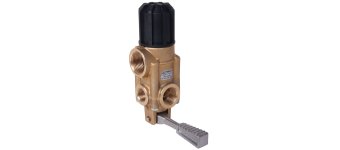

Part No: TIMAX
  • 60 Bar max pressure
  • 200 Lpm max flow
  • 60C max water temperature
  • Manual bypass lever
  • Brass body - St.steel internals
  • 3/4"BSPF inlet
Part No: TIMAX100
  • 100 Bar max pressure
  • 200 Lpm max flow
  • 60C max water temperature
  • Manual bypass lever
  • Brass body - St.steel internals
  • 3/4"BSPF inlet
Part No: R2
  • 210 Bar max pressure
  • 230 Lpm flow
  • 85C max water temperature
  • Pressure adjusting knob
  • Brass body
  • 1"BSPF inlet
Part No: R1/200
  • 200 Bar max pressure
  • 110 Lpm flow
  • 85C max water temperature
  • Brass body - St.steel internals
  • 3/4"BSPF inlet
  • 3/4"BSPF bypass
Part No: R1/400
  • 400 Bar max pressure
  • 110 Lpm flow
  • 85C max water temperature
  • Brass body - St.steel internals
  • 3/4"BSPF inlet
  • 3/4"BSPF bypass
Part No: R1/600
  • 600 Bar max pressure
  • 70 Lpm flow
  • 85C max water temperature
  • Brass body - St.steel internals
  • 3/4"BSPF inlet
  • 3/4"BSPF bypass
Part No: R1X/200
  • 200 Bar max pressure
  • 110 Lpm flow
  • 85C max water temperature
  • AISI316 stainless steel
  • 3/4"BSPF inlets
  • 3/4"BSPF bypass
Part No: R1X/400
  • 400 Bar max pressure
  • 110 Lpm flow
  • 85C max water temperature
  • AISI316 stainless steel
  • 3/4"BSPF inlets
  • 3/4"BSPF bypass
Part No: R1X/600
  • 600 Bar max pressure
  • 70 Lpm flow
  • 85C max water temperature
  • AISI316 stainless steel
  • 3/4"BSPF inlets
  • 3/4"BSPF bypass
